产品描述

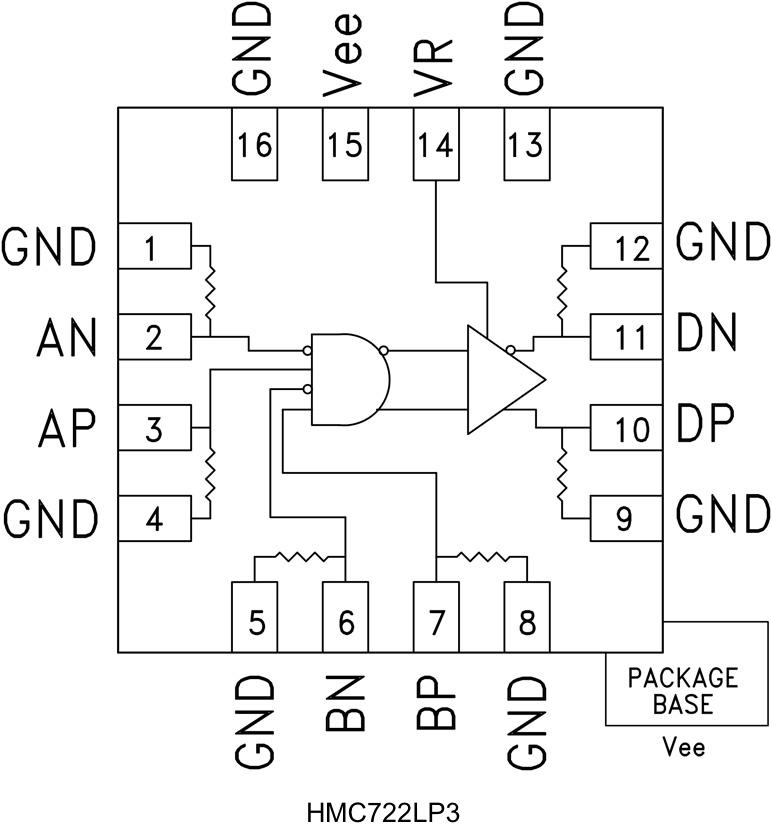

The HMC722LP3E is an AND/NAND/OR/NOR function designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. The HMC772LP3E may be easily confi gured to provide any of the following logic functions: AND, NAND, OR and NOR. The HMC722LP3E also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.

All input signals to the HMC722LP3E are terminated with 50 Ohms to ground on-chip, and may be either AC or DC coupled. The differential outputs of the HMC722LP3E may be either AC or DC coupled. Outputs can be connected directly to a 50 Ohm to ground terminated system, while DC blocking capacitors may be used if the terminating system is 50 Ohms to a non-ground DC voltage. The HMC722LP3E operates from a single -3.3V DC supply, and is available in a RoHS compliant 3x3 mm SMT package.

Applications

RF ATE Applications

Broadband Test & Measurement

Serial Data Transmissionup to 13 Gbps

Digital Logic Systems up to 13 GHz

NRZ-to-RZ Conversion

优势和特点

Supports High Data Rates: up to 13 Gbps

Differential & Singe-Ended Operation

Propagation Delay: 95 ps

Fast Rise and Fall Times: 19 / 18 ps

Programmable Differential Output Voltage Swing: 600 - 1100 mV

Low Power Consumption: 230 mW typ.

Single Supply: -3.3V

16 Lead 3x3mm SMT Package: 9mm²
