HMC713MS8 - 54 dB, Logarithmic Detector/Controller SMT, 45 - 2700 MHz

HMC713MS8是AD公司的一款非RMS响应功率检波器产品，HMC713MS8是54 dB, Logarithmic Detector/Controller SMT, 45 - 2700 MHz，本站介绍了HMC713MS8的封装应用图解、特点和优点、功能等，并给出了与HMC713MS8相关的AD元器件型号供参考。

HMC713MS8 - 54 dB, Logarithmic Detector/Controller SMT, 45 - 2700 MHz - 非RMS响应功率检波器 - 射频和微波 - Analog Devices

产品描述

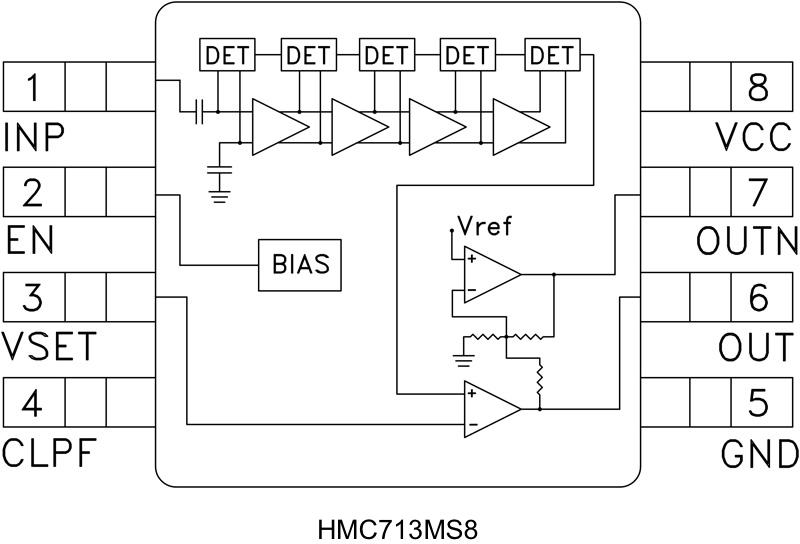

The HMC713MS8(E) Logarithmic Detector/Controller is ideal for converting RF signals with frequencies in the 45 MHz to 2700 MHz range, to a proportional DC voltage at its output. The HMC713MS8(E) employs a successive compression technology which delivers 54 dB of dynamic range with high conversion accuracy over a wide input frequency range. As the input signal is increased, successive amplifi ers move into saturation one by one creating an accurate approximation of the logarithm function.

The outputs of a series of detectors are summed, converted into voltage domain and buffered to drive the OUT output. For detection mode, the OUT pin is connected to the VSET input and will provide a nominal logarithmic slope of 17 mV/dB and an intercept of -68 dBm. The HMC713MS8(E) can also be used in the controller mode where an external voltage is applied to the VSET pin to create an AGC or APC feedback loop.

Applications

Cellular Infrastructure

WiMAX, WiBro & LTE/4G

Power Monitoring & Control Circuitry

Receiver Signal StrengthIndication (RSSI)

Automatic Gain & Power Control

Military, ECM & Radar

优势和特点

Wide Dynamic Range: up to 54 dB

High Accuracy: ±1 dB with 54 dB Range up to 2.7 GHz

Fast Output Response Time

Supply Voltage: +2.7 to +5.5V

Power-Down Mode

Excellent Stability over Temperature

MSOP-8 SMT Package: 14.8 mm²
