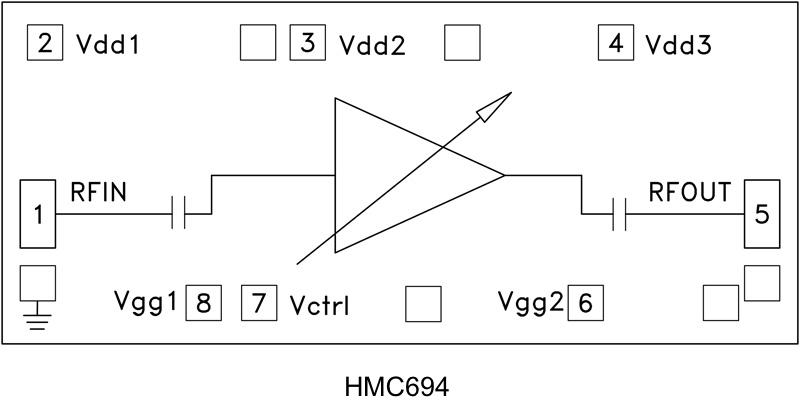

HMC694-Die - 典型设计图：
HMC694-Die典型设计图一
AD芯片：
承诺原装正品
专营AD，真正优化您的供应链
AD产品 - HMC694-Die介绍

HMC694-Die - Analog Variable Gain Amplifier Chip, 6 - 17 GHz

HMC694-Die是AD公司的一款可变增益放大器 (VGA)产品，HMC694-Die是Analog Variable Gain Amplifier Chip, 6 - 17 GHz，本站介绍了HMC694-Die的封装应用图解、特点和优点、功能等，并给出了与HMC694-Die相关的AD元器件型号供参考。

HMC694-Die - Analog Variable Gain Amplifier Chip, 6 - 17 GHz - 可变增益放大器 (VGA) - 放大器 - Analog Devices

产品描述

The HMC694 is a GaAs MMIC PHEMT analog variable gain amplifier die which operates between 6 and 17 GHz. Ideal for microwave radio applications, the amplifier provides up to 24 dB of gain, output P1dB of up to 22 dBm, and up to 30 dBm of Output IP3 at maximum gain, while requiring only 170 mA from a +5V supply. A gate bias (Vctrl) is provided to allow variable gain control up to 23 dB. Gain flatness is excellent from 6 to 17 GHz, making the HMC694 ideal for EW, ECM and radar applications.

The HMC694 can easily be integrated into Multi-Chip-Modules (MCMs) due to its small size and no external matching. All data is taken with the chip in a 50 Ohm test fixture connected via 0.025 mm (1 mil) diameter wire bond of minimal length 0.31 mm (12 mils).

Applications

  • Point-to-Point Radio
  • Point-to-Multi-Point Radio
  • EW & ECM
  • X-Band Radar
  • Test Equipment
    • 优势和特点
  • Wide Gain Control Range: 23 dB
  • Single Control Voltage
  • Output IP3 @ Max Gain: +30 dBm
  • Output P1dB: +22 dBm
  • No External Matching
  • Die Size: 2.26 x 0.97 x 0.1 mm
