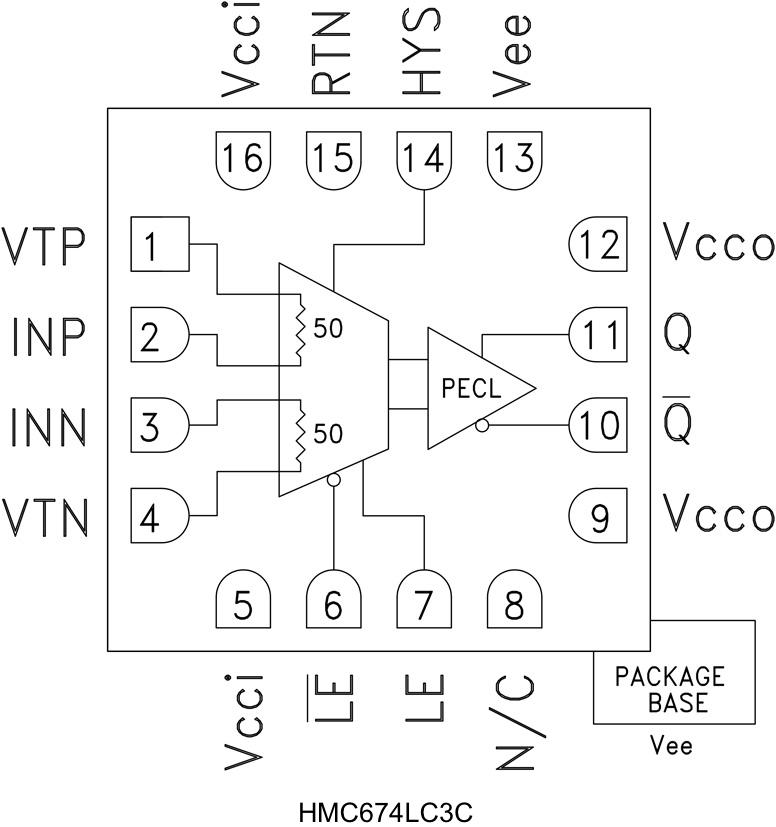

HMC674LC3C - 典型设计图：
HMC674LC3C典型设计图一
AD芯片：
承诺原装正品
专营AD，真正优化您的供应链
AD产品 - HMC674LC3C介绍

HMC674LC3C - High Speed Latched Comparator-RSPECL SMT, 10 GHz

HMC674LC3C是AD公司的一款AD芯片产品，HMC674LC3C是High Speed Latched Comparator-RSPECL SMT, 10 GHz，本站介绍了HMC674LC3C的封装应用图解、特点和优点、功能等，并给出了与HMC674LC3C相关的AD元器件型号供参考。

HMC674LC3C - High Speed Latched Comparator-RSPECL SMT, 10 GHz - AD芯片 - 高速逻辑产品 - Analog Devices

产品描述

The HMC674LC3C is a SiGe monolithic, ultra fast comparator which features reduced swing PECL output drivers and latch inputs. The comparator supports 10 Gbps operation while providing 85 ps propagation delay and 60 ps minimum pulse width with 0.2 ps rms random jitter (RJ). Overdrive and slew rate dispersion are typically 10 ps, making the device ideal for a wide range of applications from ATE to broadband communications.

The reduced swing PECL output stages are designed to directly drive 400 mV into 50 Ohms terminated to +1.3V while maintaining compatibility with other PECL logic families. The HMC674LC3C features high speed latch and programmable hysteresis and may be configured to operate in either latch mode, or as a tracking comparator.

Applications

  • ATE Applications
  • High Speed Instrumentation
  • Digital Receiver Systems
  • Pulse Spectroscopy
  • High Speed Trigger Circuits
  • Clock & Data Restoration
    • 优势和特点
  • Propagation Delay: 85 ps
  • Overdrive & Slew Rate Dispersion: 10 ps
  • Minimum Pulse Width: 60 ps
  • Resistor Programmable Hysteresis
  • Differential Latch Control
  • Active Gain: 48 dB
  • Power Dissipation: 140 mW
  • RSCML and RSECL Versions Available
  • 16 Lead Ceramic 3x3mm SMT Package: 9mm²
    • 相关的评估套件共有1个
  • EVAL-HMC674LC3C - HMC674LC3C评估板：

    • 本页提供评估HMC674LC3C的评估板订购信息。

  • EVAL-HMC674LC3C - 无：

    • 无
