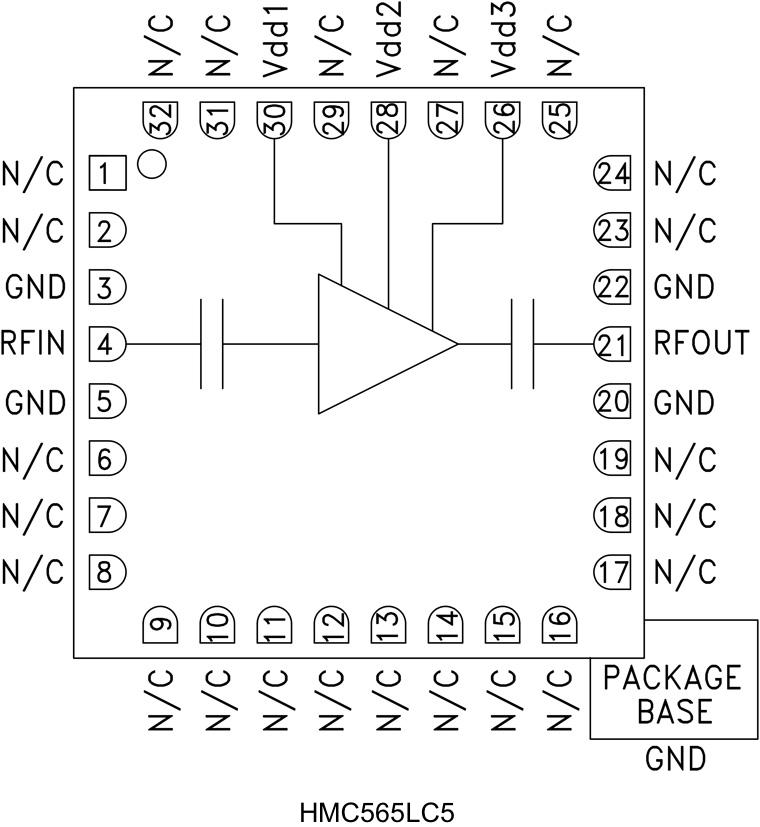

HMC565LC5 - 典型设计图：

HMC565LC5 - Low Noise Amplifier SMT, 6 - 20 GHz

HMC565LC5是AD公司的一款低噪声放大器产品，HMC565LC5是Low Noise Amplifier SMT, 6 - 20 GHz，本站介绍了HMC565LC5的封装应用图解、特点和优点、功能等，并给出了与HMC565LC5相关的AD元器件型号供参考。

HMC565LC5 - Low Noise Amplifier SMT, 6 - 20 GHz - 低噪声放大器 - 放大器 - Analog Devices, LLC

产品描述

The HMC565LC5 is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifier housed in a leadless RoHS compliant 5x5mm SMT package. Operating from 6 to 20 GHz, the HMC565LC5 features 21 dB of small signal gain, 2.5 dB noise figure and IP3 of +20 dBm across the operating band. This self-biased LNA is ideal for microwave radios due to its single +3V supply operation, and DC blocked RF I/O’s.

Applications

Point-to-Point Radios

Point-to-Multi-Point Radios & VSAT

Test Equipment and Sensors

Military & Space

优势和特点

Noise Figure: 2.5 dB

Gain: 21 dB

OIP3: 20 dBm

Single Supply: +3V @ 53 mA

50 Ohm Matched Input/Output

RoHS Compliant 5x5 mm Package
