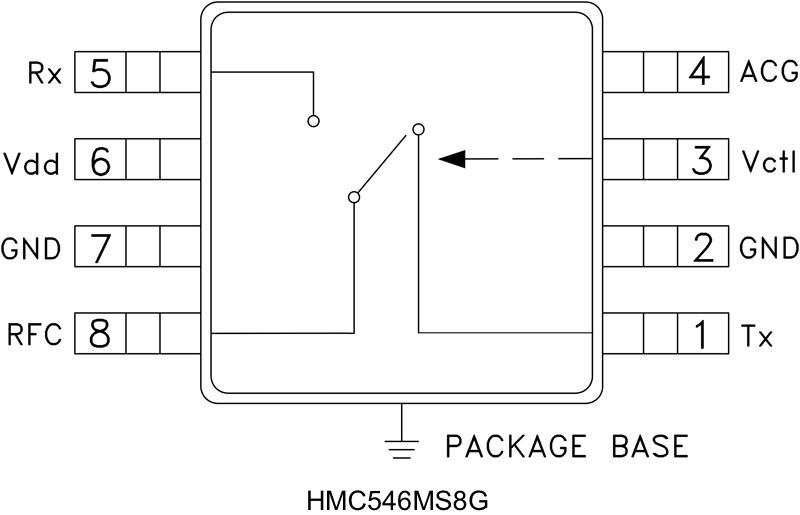

HMC546MS8G - 典型设计图：
HMC546MS8G典型设计图一
AD芯片：
承诺原装正品
专营AD，真正优化您的供应链
AD产品 - HMC546MS8G介绍

HMC546MS8G - 20 Watt Failsafe Switch SMT, 0.2 - 2.2 GHz

HMC546MS8G是AD公司的一款SPDT T/R产品，HMC546MS8G是20 Watt Failsafe Switch SMT, 0.2 - 2.2 GHz，本站介绍了HMC546MS8G的封装应用图解、特点和优点、功能等，并给出了与HMC546MS8G相关的AD元器件型号供参考。

HMC546MS8G - 20 Watt Failsafe Switch SMT, 0.2 - 2.2 GHz - SPDT T/R - 开关和多路复用器 - Analog Devices

产品描述

The HMC546MS8G(E) is a low-cost SPDT switch in 8-lead MSOP8G surface mount package for use in transmit-receive applications which require very low distortion at high signal power levels, up to 10 watts. The device can control signals from 200 - 2200 MHz* and is especially suited for cellular booster, PMR and automotive telematic applications. The design provides exceptional P0.1 dB of +40 dBm and +65 dBm IIP3 on the Transmit (Tx) port. The failsafe topology allows the switch to provide a low loss path from RFC to Tx, when no DC power is available.
*Specifications and data reflect HMC546MS8G(E) measured using the respective application circuits for each designated band found herein.

Applications

  • LNA Protection, WiMAX, WiBro
  • Cellular/PCS/3G Infrastructure
  • Private Mobile Radio & PublicSafety Handsets
  • Automotive Telematics
    • 优势和特点
  • High Input P0.1dB: +40 dBm Tx
  • Low Insertion Loss: 0.4 dB
  • Positive Control: 0/+3V to 0/+8V
  • High IIP3: +65 dBm
  • Failsafe Operation: Tx “on” When Unpowered
    • 相关的评估套件共有1个
  • EVAL-HMC546MS8G - HMC546MS8G评估板：

    • 本页提供评估HMC546MS8G的评估板订购信息。

  • EVAL-HMC546MS8G - 无：

    • 无
