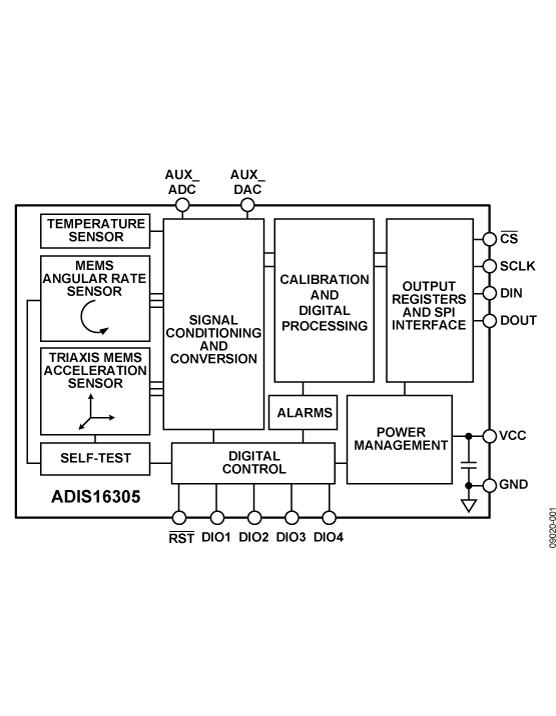

TheiSensor® ADIS16305 is a complete inertial system that includes a gyroscope and triaxis accelerometer. Each sensor in the ADIS16305 combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyro bias). As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements over a variety of conditions.

The ADIS16305 provides a simple, cost-effective method for integrating accurate, multiaxis, inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. An improved SPI interface and register structure provide faster data collection and configuration control. The ADIS16305 uses a pinout that is compatible with the ADIS1635x, ADIS1636x, and ADIS1640x families, when used with an interface flex connector.

This compact module is approximately 23 mm × 31 mm × 8 mm and provides a standard connector interface, which enables horizontal or vertical mounting.

Applications

The ADIS16305/PCB is a "breakout board," which provides (1) ADIS16305BMLZ, (1) flexible cable and (1) interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16305BMLZ is a fully-calibrated, MEMS 4DOF Inertial Sensor, which provides a serial peripheral interface (SPI) for all digital communications. It provides a dual-row, 24-pin connector interface that minimizes board space but does not support standard ribbon cable connections. The flexible cable and interface PCB provides access to the ADIS16305BMLZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.

EVAL-ADIS系统是一种基于PC的简单工具，用于评估iSensor产品，面向尚未准备好将这类产品集成到嵌入式处理器系统的人员。 该系统支持通过应用程序软件实现各支持器件的基本演示、个别寄存器访问和高速数据采集功能。 每个应用程序软件包均随附安装向导，可帮助简化安装并还随附易于使用的简单USB驱动程序包。 EVAL-ADIS随附的所有软件包均兼容Windows XP、Vista和7，并提供32位以及64位驱动程序。 EVAL-ADIS电路板厚度为0.125”，可通过预钻、预攻螺纹的安装孔来安装各个iSensor器件。 安装孔可容纳M2x0.4mm机械螺丝。 该套件还包含5组M2x0.4机械螺丝，可用于多种厚度的封装规格，无需购买额外硬件。 由于集成电源系统，因此大多数情况下无需外部电源，但的确提供外部电源输入，从而可进行电源灵敏度测试。 电源系统采用USB的+5V电压并针对+3.3V器件提供线性调节器选项。
